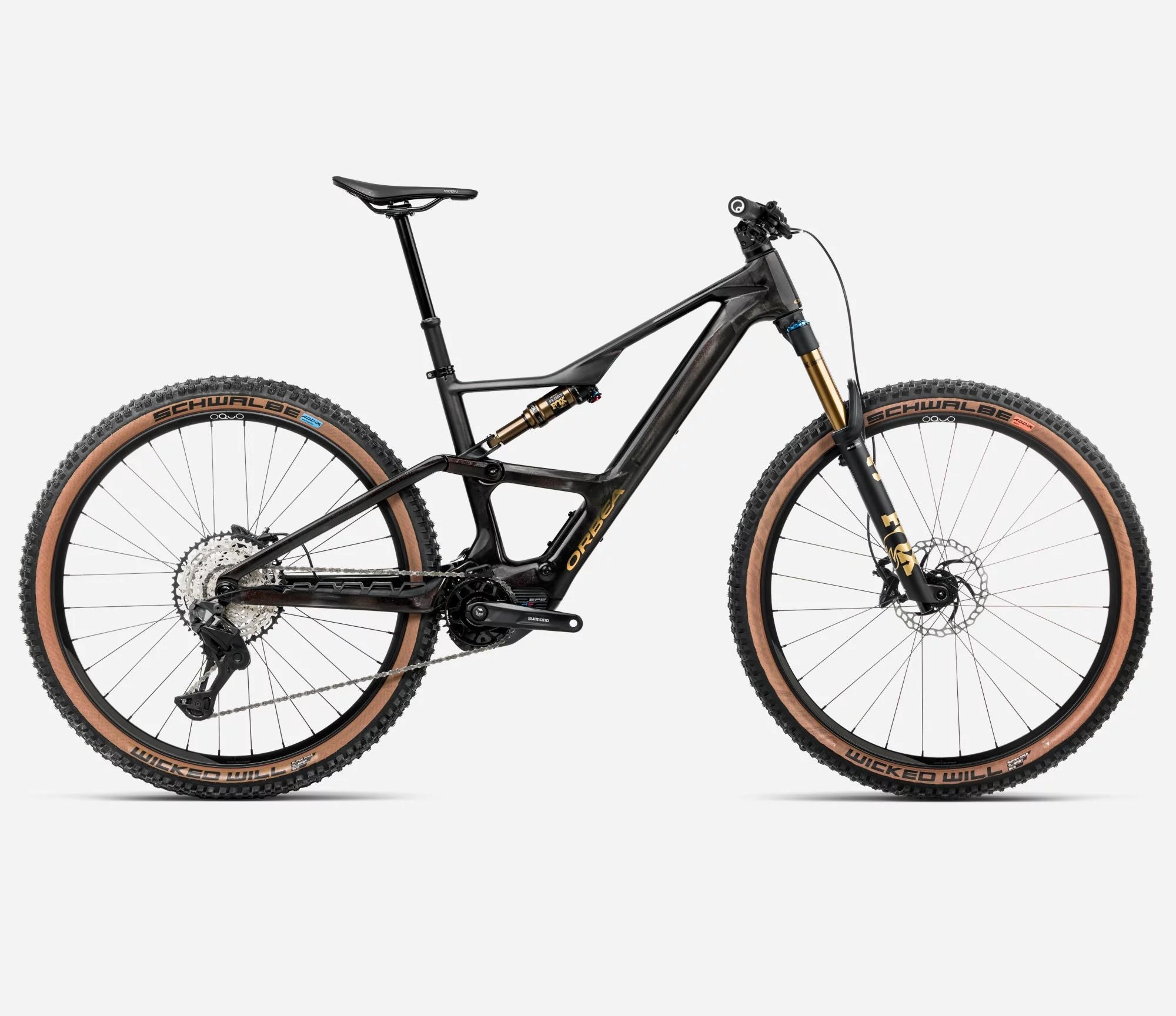

Orbea 2026 Rise SL M10 630W 30mph

Bike Specs

Frameset

Frame: Orbea Rise SL OMR 2025, 140mm travel, 29″ wheels, Concentric Boost 12×148
Shock: Fox Float Factory 2-Pos Adjust Evol LV Kashima custom tune 210x50mm
Fork: Fox 36 Float SL Factory 140, Grip X, 15×110, Kashima
Steerer tube: Alloy 1-1/2″, Black Oxidated Bearing

Ebike

Battery: Orbea Internal 420Wh
RANGE EXTENDER: N/A
Motor: Shimano EP801 RS Gen2 MC
Display: N/A
CHARGER: Orbea 2.Generation eBike Smart charger 42V/2-4A
Remote: Orbea System Controller with eDropper Remote

Drivetrain

Chainring: e*thirteen Helix Core e*spec Direct Mount 32T 55mm ChainLine
Crank: Shimano Steps EM600
Shifters: Shimano XT M8250
Cassette: Shimano CS-M7100 10-51t 12-Speed
Rear derailleur: Shimano XT M8260 SGS
Chain: Shimano M7100
Chainguide: Orbea eBike chainguide

Cockpit

Handlebar: OC Mountain Control MC21 Alu SL, Rise20, Width 800
Stem: OC Mountain Control MC20, 0º
Computer Mount: OC Computer Mount CM-05, Garmin/Sigma

Brakes

Brakes: Shimano M6120 Hydraulic Disc
Rotors: Galfer Wave Rotors 180mm front / 180mm rear
Brakes Configuration: N/A

Wheels

Wheels: Oquo Mountain Control MC32TEAM
Tyres: Schwalbe Wicked Will Evo TLE, 29×2.40 Super Race, Soft Compound, Addix, Brown
Tyres: Schwalbe Wicked Will Evo TLE, 29×2.40 Super Race, Speed Grip, Addix, Brown

Components

Seatpost: OC Mountain Control MC10, 31.6mm, Electronic Dropper
Saddle: Fizik Terra Ridon X5 145mm
Grips: Ergon GXR

Accessories

Tools: OC FLP Multitool MT-20, Hex 2, 3, 4, 5 + OC Rear axle lever (Hex 6 & valve core removal)
